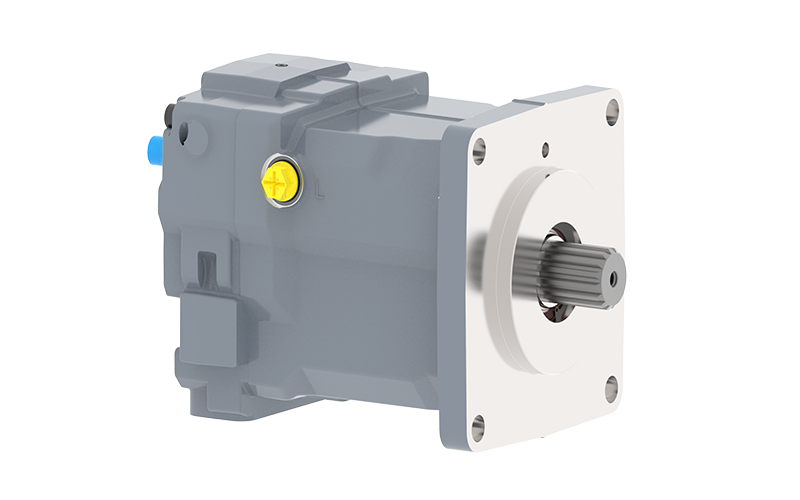

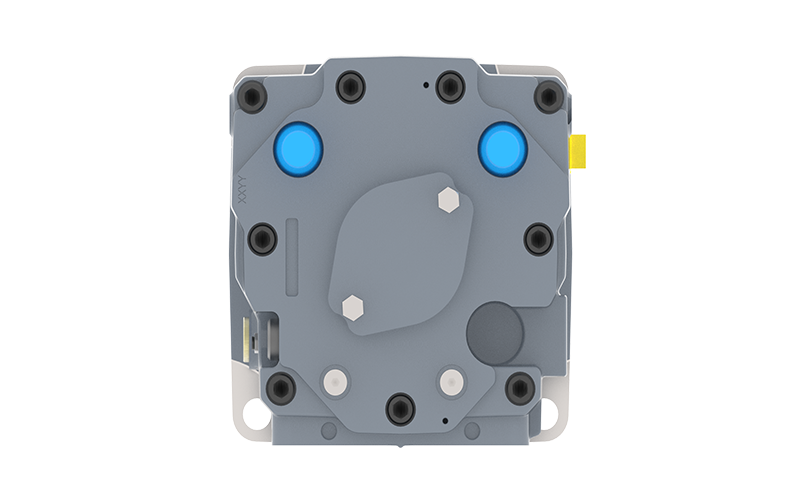

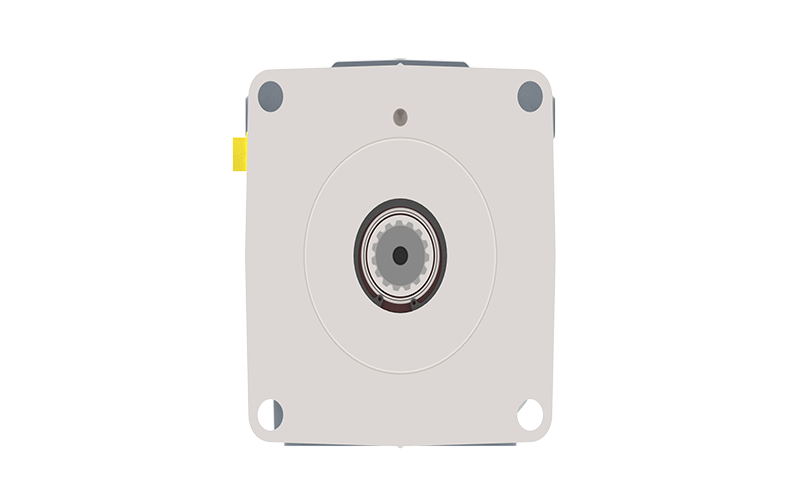

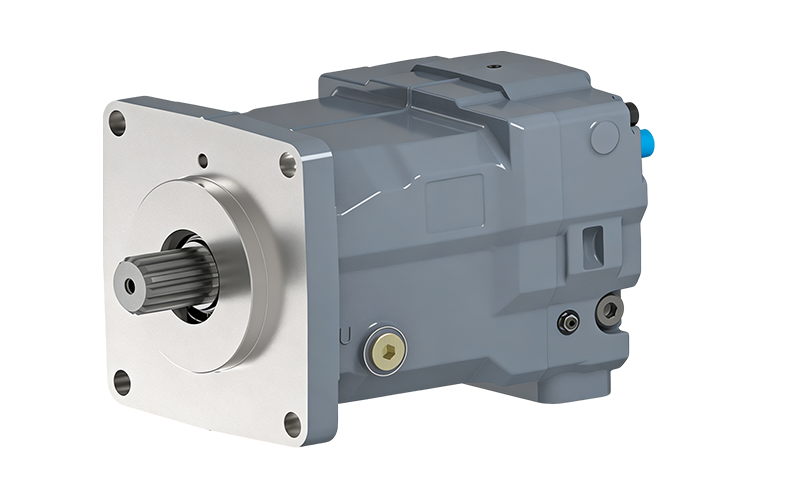

HMF-02/HMA-02 Series Axial Piston Fixed Motor

Excellent low-speed stability, reliable product performance, and easy maintenance.

Suitable for road rollers, mobile cranes, pavers, harvesters, dust suppression vehicles, mixer trucks, forage harvesters, road sweepers, and petroleum equipment

450

额定压力 bar

281.9

最大排量 cc/rev

产品手册下载服务图标

服务支持

立即询价产品咨询

/Produits et activités/Systèmes de motorisation/Composants/Hydraulics/Moteur

概述优势规格型谱表

产品概述

HMF-02/HMA-02 high-pressure fixed motors are designed for open or closed-loop systems. Soft starting and braking characteristics can be achieved by setting the secondary valve relief pressure. Maximum starting and braking torque can be obtained when equipped with a variable-pressure secondary relief valve. The pressure settings and adjustment ranges can also be tailored to the specific requirements of different projects.

产品优势

Superior low-speed stability.

High power density.

Reliable and easy to maintain.

产品规格

Parameter Name	35	55	63	65	75	85	90	105	135	165	210	280
Max. displacement (cc/rev)	35.6	54.7	63	65	75.9	85.6	90	105	135.6	165.6	210	281.9
Max. operating speed (rpm)	4500	4100	3900	3800	3800	3600	3500	3500	3200	3100	2700	2400
Max. instantaneous speed (rpm)	4800	4400	4200	4100	4100	3850	3800	3800	3500	3400	3000	2700
Rated pressure (bar)	450	450	450	450	450	450	450	450	450	450	450	450
Max. pressure (instantaneous) (bar)	500	500	500	500	500	500	500	500	500	500	500	500
Allowable case pressure (bar)	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Torque at rated pressure (N·m)	244	374	431	444	519	586	615	719	928	1133	1438	1929
Theoretical power (kW)	115	161	176	176	207	221	225	263	311	368	407	485
Weight (approx.) (kg)	16	19	24	26	26	33	33	33	39	76	101	146

备注：产品参数及图片仅供参考；如有变动，不另行通知。
